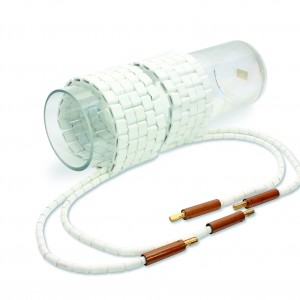

Our high quality ceramic heating elements is manufactured from high grade nickel-chrome (NiCr) 80/20 19 Stranded resistance wire which run through durable aluminum oxide ceramics beads. Each ceramic pad heater has a cold tail of nickel 212 wire which allows the operator to safely work with the element heater when it’s in use. All of our ceramic heating elements are equipped with Camlock connectors.
The insulators together with the resistance wires are very flexible and gives a good heat radiation and effective heat transmission during the required thermal process. ElectroHeat FCP heating elements are manufactured with a wide range of power ratings and voltages. We are able to meet our customers’ needs regarding special models of size, shape, voltages and power rating.
Our ceramic pad heater is designed for temperatures up to 1000°C and suitable for all kinds of heating like preheating, tempering, annealing, soft annealing, normalizing, stress relieving, homogenizing and recrystallization of pipes and pressure vessels etc. This of type ceramic heaters can be customized with voltages from 30V up to 80V.
We stock the following elements but we also have the ability to customize these heating elements as we manufacture them in our own workshop in Gothenburg, Sweden.
Order Code: Dimensions: Voltage: Power: (kW)
04-03-32 75x660mm (CP3) 60 2,7
04-03-33 75x680mm 60 2,7
04-03-34 75x700mm 60 2,7
04-04-24 100x495mm (CP4) 60 2,7
04-04-25 100x515mm 60 2,7
04-04-26 100x535mm 60 2,7
04-05-18 125x380mm 60 2,7
04-05-20 125x420mm 60 2,7
04-05-21 125x440mm 60 2,7
04-05-22 125x460mm 60 2,7
04-06-16 150x335mm (CP6) 60 2,7
04-06-17 150x360mm 60 2,7
04-06-18 150x380mm 60 2,7
04-07-14 175x295mm 60 2,7
04-07-15 175x315mm 60 2,7
04-08-12 200x255mm (CP8) 60 2,7
04-08-13 200x275mm 60 2,7
04-09-11 225x235mm 60 2,7
04-09-12 225x255mm 60 2,7
04-10-10 255x210mm (CP10) 60 2,7
04-10-11 255x235mm 60 2,7
04-11-09 280x195mm 60 2,7
04-11-10 280x215mm 60 2,7

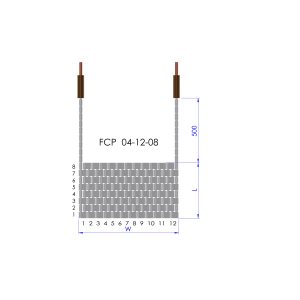

04-12-08 305x170mm (CP12) 60 2,7
04-12-09 305x195mm 60 2,7
04-13-07 330x150mm 60 2,7
04-13-08 330x175mm 60 2,7
04-14-07 355x150mm 60 2,7
04-15-06 380x125mm 60 2,7
04-15-07 380x145mm (CP15) 60 2,7
04-16-06 405x125mm (CP16) 60 2,7
04-17-05 430x105mm 60 2,7
04-17-06 430x125mm 60 2,7
04-18-05 455x100mm 60 2,7
04-18-06 455x125mm 60 2,7
04-19-05 480x105mm 60 2,7
04-20-05 510x105mm 60 2,7
04-21-04 535x85mm 60 2,7
04-21-05 535x100mm (CP21) 60 2,7
04-24-04 610x85mm (CP24) 60 2,7
04-48-02 1220x45mm (CP48) 60 2,7
04-03-17 75x360mm 30 1,35
04-04-13 100x275mm 30 1,35
04-05-10 125x215mm 30 1,35
04-06-08 150x175mm 30 1,35
04-07-08 175x175mm 30 1,35
04-08-06 200x125mm 30 1,35
04-09-06 225x125mm 30 1,35
04-10-04 255x85mm 30 1,35
04-11-05 280x105mm 30 1,35
04-12-04 305x85mm 30 1,35
04-13-04 330x85mm 30 1,35
04-14-04 355x85mm 30 1,35
04-15-03 380x65mm 30 1,35
04-16-03 405x65mm 30 1,35
04-17-03 430x65mm 30 1,35
04-18-03 455x65mm 30 1,35
04-24-02 610x45mm 30 1,35
